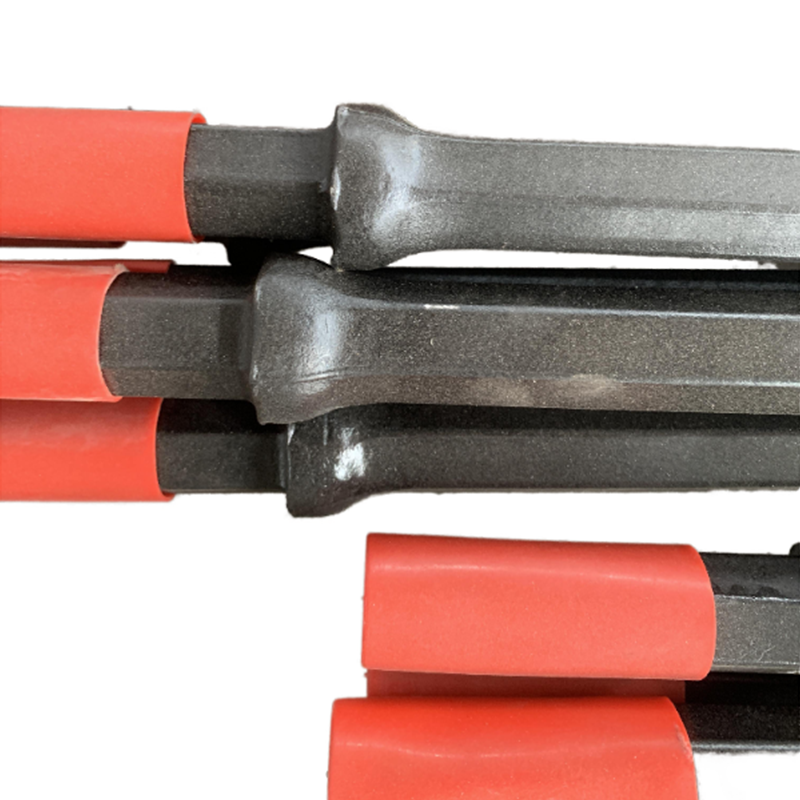

H22 Tapered Drill Rod
Model / SKU:PFM-H22TR
H22 × 108 mm tapered drill rod with an 11° bit connection and central flushing passage for compatible hand-held and air-leg rock drills.
A matched drill-string component that transfers impact and rotation from an H22 × 108 mm rock-drill interface to an 11° tapered bit. Effective length is selected for the required hole depth and working space.
Select
Send the rock-drill model, H22 × 108 mm interface, required rod length, taper angle, bit diameter, quantity and delivery country.
| Shank Cross Section | H22, 22 mm hexagonal |
|---|---|
| Shank Length | 108 mm |
| Taper Angle | 11° |
| Bit Connection | Matching 11° tapered drill bit |
| Flushing Arrangement | Hollow drill steel with central flushing passage |
| Collar and Striking Interface | Collared H22 × 108 mm striking interface |
Final interface dimensions, selected configuration and supply scope are stated in the formal quotation or approved drawing.
Rock drill with verified H22 × 108 mm chuck and striking interface
Shank cross section, shank length, collar and retention must match the delivered drill
YT28 and YT29A model families commonly use H22 × 108 mm interfaces, but the delivered chuck and supplier drawing must still be checked.
Matching 11° tapered drill bit
Taper angle and socket must match exactly
Select bit diameter, button or chisel design and flushing arrangement according to hole size, rock condition and drilling system.
The tapered end seats into a drill bit with the same taper angle to transfer impact and rotation through the rod-to-bit connection.
Buyer value
Creates a replaceable tapered drill-string interface for hand-held and air-leg drilling when the rod, bit and rock drill are correctly matched.
Selection condition
The rod and bit must both use the same 11° taper. Confirm the socket and taper using a drawing, gauge or physical sample.
The hollow rod provides a central passage for flushing while the collar locates the rod at the rock-drill interface.
Buyer value
Supports removal of cuttings and stable positioning in a complete tapered drilling system.
Selection condition
Confirm flushing medium, bore, rod length, collar position, straightness and rock-drill interface for the selected drilling system.

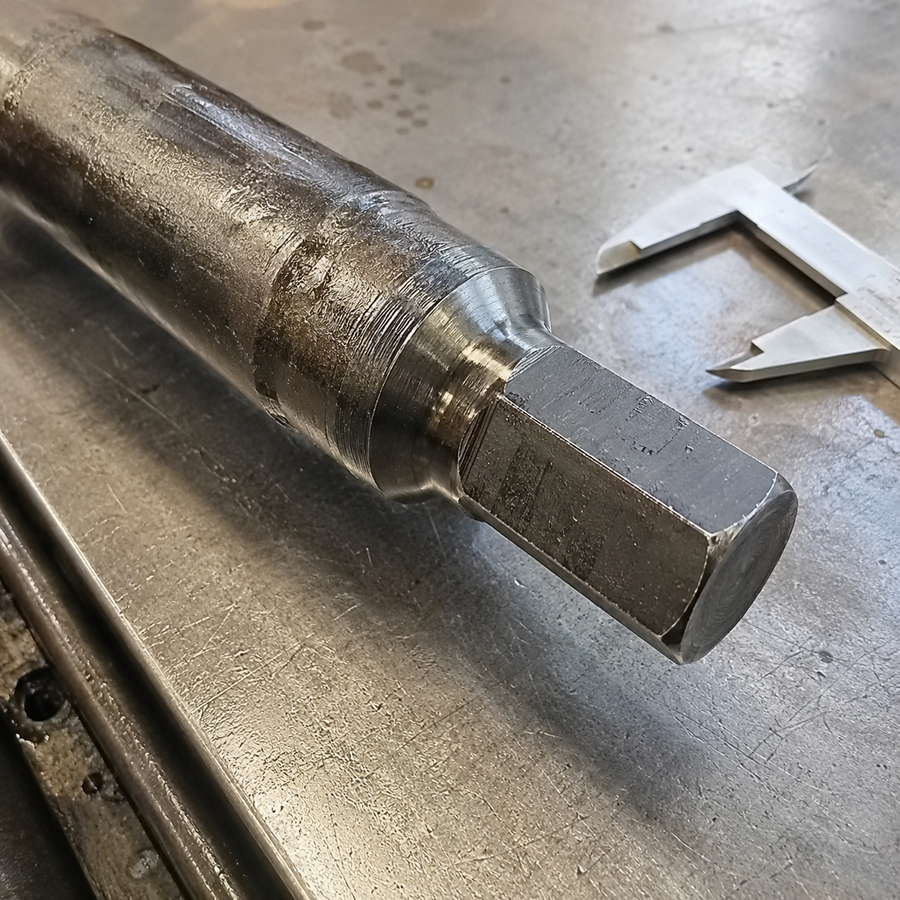

Dimensional, Interface and Visual Inspection
Shank size, shank length, taper angle, effective length, collar position, straightness, flushing passage, surface condition and packing can be checked before export.
Inspection scope and tolerances depend on the approved drawing and the checks included in the quotation.
Inspection photos, dimensional records or material documents can be supplied when specifically included in the order.

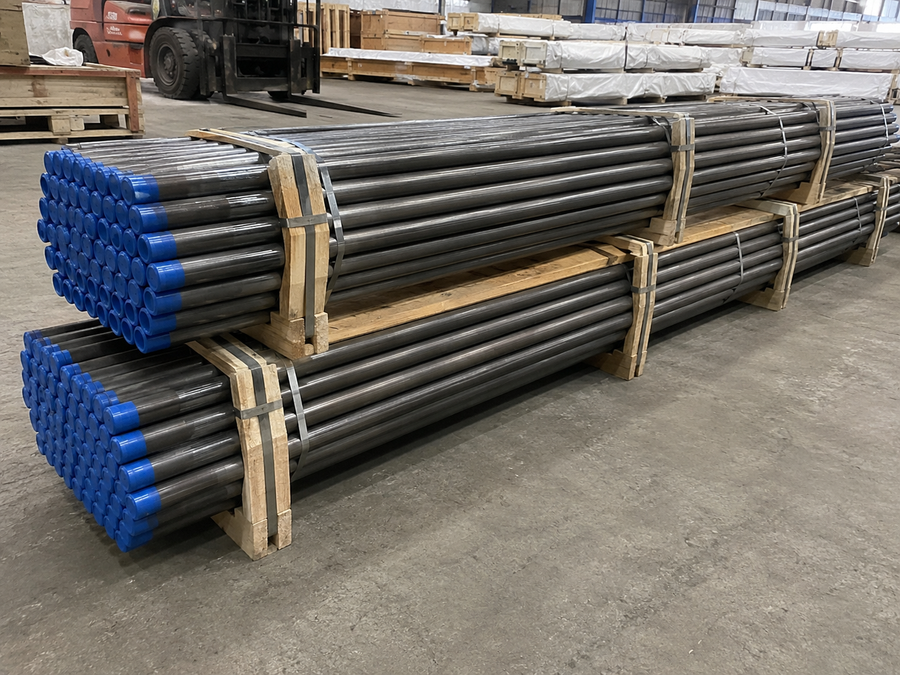

Rods can be bundled or packed in reinforced export cases with end protection and corrosion-control measures appropriate to the shipment. Final bundle quantity, case dimensions, gross weight, marks and shipping terms are confirmed in the formal quotation.

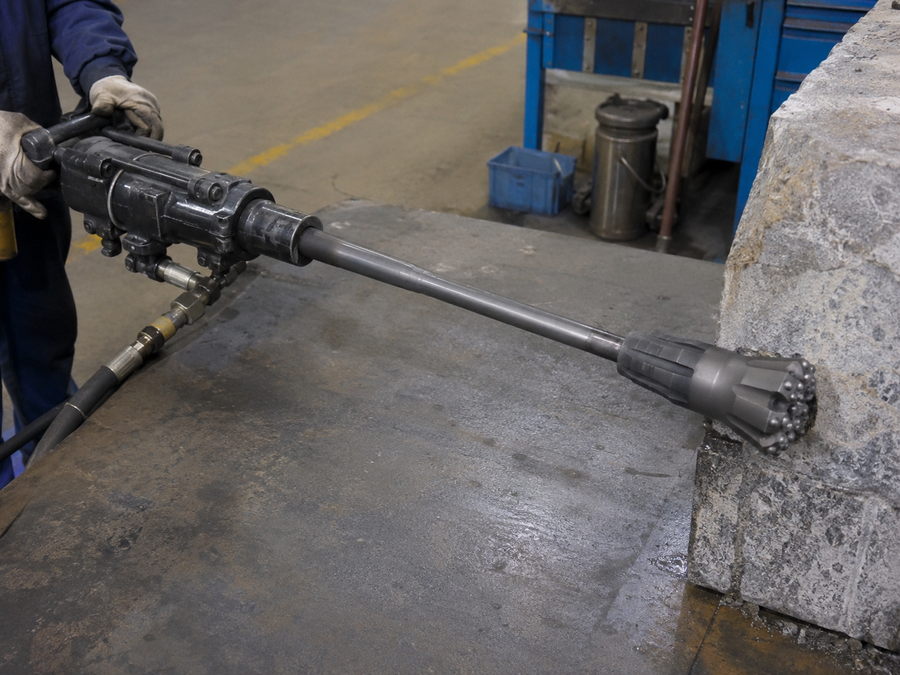

A complete tapered drilling system can include the rock drill, H22 × 108 mm tapered rod in the required length, a matching 11° bit, lubricator, hoses, flushing supply and recommended wear parts. Every interface must be confirmed before order.
Ready to Confirm the Configuration?
We will confirm the shank, collar, effective length, taper, flushing passage, matching bit and export packing.
Product Evidence
A matched drill-string component that transfers impact and rotation from an H22 × 108 mm rock-drill interface to an 11° tapered bit. Effective length is selected for the required hole depth and working space.
Images support product identification and configuration discussion. Final supplied configuration, inspection scope and packing details are confirmed in the formal quotation.
