Pneumatic Breaker for Refractory Demolition: Cold Work, Tool Control and Limits

A handheld pneumatic breaker can be suitable for small, controlled sections of cooled refractory removal when the lining is stable enough to approach, the furnace or vessel is fully isolated, the workface can be ventilated and supported, and the tool can be used without damaging the shell, anchors, cooling elements or retained lining. It is not a default method for hot work, unsupported overhead lining, uncertain atmospheres, large-volume tear-outs or spaces that require remote demolition.

The decision is therefore not simply “will the breaker fracture the brick?” The project team must confirm the demolition boundary, refractory composition, access, structural condition, atmosphere, dust controls, tool orientation, air supply and waste route. Site rules, the equipment owner’s isolation procedure and the breaker manufacturer’s instructions remain controlling documents.

When a pneumatic breaker is a reasonable method

Evaluate handheld breaking for local repair zones and restricted-access areas only as part of the approved demolition method. Compare it with mechanized or water-jet options using the actual lining, access, retained components, exposure controls and shutdown schedule. Do not assume that one method is always faster or more precise; handheld work also places the operator close to the workface.

A pneumatic breaker is most defensible when all of the following are true:

• The unit is shut down, cooled, depressurized, drained where required and locked out under the owner’s approved procedure.
• The work area is not exposed to heat, process gas, stored energy, falling lining or uncontrolled material movement.
• The removal zone is limited and clearly marked from an approved drawing, inspection report or repair plan.
• The substrate, shell, anchors, tubes and adjacent lining that must remain can be identified and protected.
• The breaker’s intended orientation, insertion tool, air pressure, air flow and lubrication requirements can be met.
• Dust capture, ventilation, lighting, communication, debris handling and emergency access are practical.

Large furnace bottoms, unstable roofs, extensive slag build-up and hazardous areas require the responsible engineering and demolition team to assess remote or alternative methods. Plan cooldown, stability, access and removal together. A handheld tool should fill a defined role inside the approved demolition plan, not replace the plan.

Pre-work questions that decide the method

Before selecting a breaker, hold a joint review with operations, refractory engineering, maintenance, safety and the demolition contractor. The review should resolve these questions in writing.

Do not identify old lining by appearance alone. Service-exposed refractory may contain process deposits or hazardous constituents that change the exposure and disposal plan. Obtain the original specification where possible and use competent sampling or analysis when the material is uncertain.

Choose the breaker and working tool as a system

Selecting the heaviest available breaker is a poor shortcut. The appropriate package must fit the material, required control, working position and access. A model offered for pavement or general demolition is not automatically approved for every furnace orientation or environment. Confirm the exact model’s permitted positions, temperature limits and operating instructions before selection.

Use a narrow chisel or moil point only when it matches the approved removal sequence and the breaker’s holder. A wider chisel can help peel brittle material, but it may transmit force across a larger area or catch behind retained lining. Every insertion tool must match the required shank geometry, guide diameter, collar and retainer interface. For a broader comparison, see the PerfoMax guide to pneumatic breaker chisel types.

Before ordering or mobilizing, record:

• breaker model and operating instructions;
• approved work orientation and operator position;
• required air pressure at the tool and stated air consumption;
• hose internal diameter, length, coupling profile, restraint and isolation point;
• lubricator type, placement and specified oil;
• chisel shank, working-end profile and usable length;
• planned dust-control and ventilation arrangement; and
• wear parts, inspection points and stop criteria.

If the compressor and distribution line cannot maintain the manufacturer’s required conditions at the inlet while other tools are operating, the breaker may become weak or erratic. Do not compensate by raising pressure beyond the tool rating. Measure at the relevant point and account for hose length, bore, couplings and simultaneous demand.

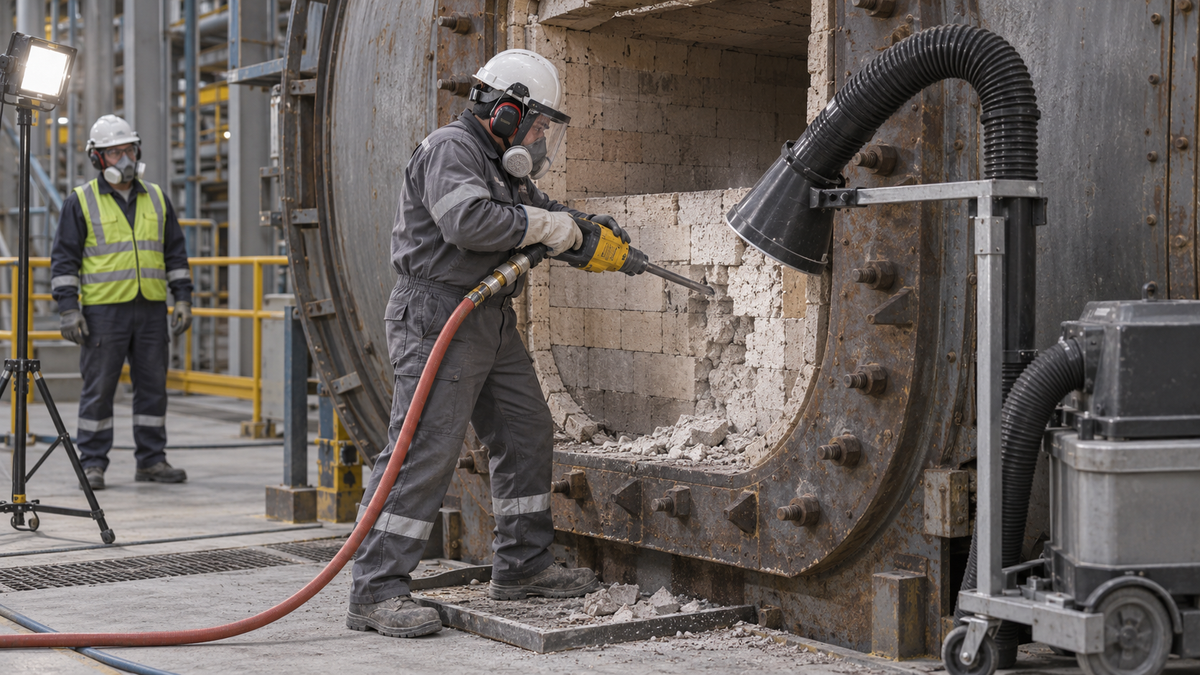

Control dust, atmosphere and debris before impact starts

Refractory demolition can release respirable dust, including crystalline silica depending on the material, as well as process contamination from service. OSHA’s construction silica standard requires employers to assess and control occupational exposure; local law and the site’s industrial-hygiene program determine the required controls. A disposable mask chosen by convenience is not a substitute for exposure assessment, engineering controls and a compliant respiratory-protection program.

Plan capture at the point of fracture. Local exhaust ventilation should be positioned without obstructing the tool, escape route or spotter. Wet suppression may be useful only when the refractory owner permits water and the method does not create chemical, electrical, steam, slip, waste or lining-quality hazards. Dry vacuum systems must be specified for the dust and environment rather than improvised from general shop equipment.

A furnace, kiln, ladle, duct, cyclone or reactor may meet the site or legal definition of a confined space. If so, the entry permit, atmospheric testing, isolation, ventilation, attendant, communication and rescue plan are separate prerequisites. Handheld breakers consume compressed air and exhaust it locally; that airflow must not be treated as breathing-air ventilation or as proof that the atmosphere is safe.

A controlled removal sequence

1. Verify release for work. Confirm the signed isolation, cooldown, atmosphere and access status. Inspect for loose overhead material before anyone enters the exposure zone.
2. Mark the boundary. Transfer the approved repair limits and protected features to the workface. Establish a debris exclusion zone and a route that does not trap the operator.
3. Inspect the complete air system. Check breaker, retainer, chisel, lubricator, hose, couplings and restraints. OSHA requires pneumatic power tools to be secured to the hose or whip so they cannot disconnect accidentally, and insertion tools must be retained.
4. Test controls outside the workface. Confirm throttle return, lubrication delivery and normal sound and impact using the manufacturer’s procedure. Stop if the tool leaks, starts unexpectedly or will not retain the chisel.
5. Open a small trial area. Begin where the engineer or supervisor has designated. Use short controlled passes to reveal actual lining condition and verify that the selected tool separates material without unacceptable damage.
6. Work toward a free face. Remove material in manageable pieces. Avoid burying the chisel deeply or levering sideways, which can jam the tool, bend the working end or transmit force into retained lining.
7. Inspect as layers appear. Pause when anchors, backup layers, shell, tubes or unexpected deposits become visible. Only the responsible technical authority should approve a changed boundary.
8. Clear debris without undermining. Maintain footing and access, but do not stand beneath unsupported courses or create a hollow face that can fall unexpectedly.
9. Hand over the substrate. Record remaining lining, anchor and shell condition, photographs, removed volume, exceptions and any areas not accessible for inspection.

Stop-work signals

Stop, isolate the air and reassess when any of the following occurs:

• lining moves outside the marked boundary, a crack propagates overhead or a larger section becomes unsupported;
• temperature, gas, liquid, pressure or process residue is discovered;
• the shell, cooling element, anchor system or retained layer is struck or exposed unexpectedly;
• dust capture fails, visibility degrades or atmospheric readings leave the permitted range;
• the chisel repeatedly jams, mushrooms, cracks or will not remain secured;
• the breaker develops abnormal vibration, weak or irregular blows, continuous leakage or throttle problems; or
• hose routing, debris or access compromises evacuation or the attendant’s control of the area.

Do not solve these signals by adding impact force or extending trigger time. They indicate that the assumed material, boundary, tool condition or work environment no longer matches the approved method.

Common planning mistakes

Treating “cold” as an assumption

Elapsed shutdown time is not proof of a safe temperature or atmosphere. Use the owner’s verified release criteria and measurements at the actual work area.

Starting from the easiest-looking crack

A visible crack may be connected to a loose or unsupported mass. The removal sequence must follow the engineered boundary and stability assessment.

Using tool weight as the main selection rule

More mass can reduce control and increase substrate damage. Select for orientation, access, air demand, chisel interface and removal precision as well as breakage capability. The guide on choosing a pneumatic breaker explains the broader matching logic.

Ignoring waste classification

Removed lining is not automatically ordinary rubble. Keep identified material streams separated and follow the site’s sampling, containment, labeling and disposal requirements.

RFQ checklist for a refractory-removal breaker package

Give a supplier the exact application boundary rather than asking for “a jackhammer for a furnace.” Include:

• refractory type and condition, if known, plus photographs and removal thickness;
• local repair or full tear-out, estimated area and shutdown window;
• required work orientation, access opening and platform constraints;
• available pressure and flow at the proposed tool connection;
• hose length, bore, coupling and restraint standard;
• required chisel profile, shank interface and working length;
• lubricator, moisture-control and ambient-temperature conditions;
• expected duty pattern and requested wear/spare kit;
• required manuals, parts list and inspection records; and
• confirmation that the tool will be used only within the approved cold-work plan.

Frequently asked questions

Can a pneumatic breaker remove refractory brick and castable?

It can remove some cooled brick and castable linings, but suitability depends on material, thickness, bond, contamination, access and what lies behind the lining. A trial area and an approved removal boundary are safer than assuming one setup fits every layer.

Can the breaker be used while the furnace is still hot?

Do not treat a standard handheld pneumatic breaker as permission for hot refractory demolition. Hot work can involve thermal exposure, unstable lining, process gases and rescue constraints. Use the facility’s engineered method and equipment specifically approved for those conditions.

Which chisel is best for refractory demolition?

There is no universal profile. A point may initiate a break; a narrow or wider chisel may separate a layer more controllably. The choice must match the breaker holder, material response, retained substrate and approved removal sequence.

Does compressed-air exhaust provide enough ventilation inside a furnace?

No. Tool exhaust is not a substitute for engineered ventilation, atmospheric testing or breathing-air controls. It can also stir settled dust and change airflow around the workface.

When should a remote method replace a handheld breaker?

Use a remote or alternative method when heat, unstable overhead lining, hazardous atmosphere, large volume, limited escape, excessive exposure or substrate-protection requirements make close operator contact unacceptable. The decision belongs in the project risk assessment.

Define the job before selecting the tool

For a breaker and chisel recommendation, send PerfoMax the refractory description, removal boundary, access opening, working orientation, available air supply, hose arrangement, preferred shank interface and expected duty. Review the current pneumatic breaker and pick range, then request confirmation for the complete tool, chisel, hose and lubricator package. Final approval should remain with the furnace owner and the competent demolition team.

Technical references: WorkSafe Victoria demolition planning guidance; OSHA pneumatic-tool requirements; and OSHA respirable crystalline silica requirements. Applicable law, site procedures and manufacturer instructions take precedence.
