An inline lubricator meters a controlled amount of the specified oil into the compressed-air stream before that air enters a pneumatic breaker. The moving air carries the oil toward the breaker’s internal sliding and impact components. This is the basic purpose of a line oiler: it provides continuous air-line lubrication during operation.
It is not a water separator, pressure regulator, flow meter or cure for a worn breaker. The correct oil, lubricator type, orientation, location and feed setting depend on the exact breaker and lubricator manuals. The principles below help mines, quarries, contractors and distributors specify and check a package without inventing a universal setting.
Where the lubricator fits in the breaker air path
A typical site path may include the compressor or receiver, condensate management, an approved separator or filter, a regulator or manifold where required, the supply hose, an inline lubricator, the final hose or coupling and the breaker inlet. The exact sequence is not universal. Some installations use a portable line oiler near the tool; others use a lubricator incorporated into a service unit. The approved arrangement for the specific tool and site remains controlling.
The flow arrow on the lubricator matters. The inlet must face the air source and the outlet must face the breaker. The reservoir must also be installed and operated in the orientation allowed by its manufacturer. A lubricator mounted backwards or outside its approved attitude can appear connected while delivering oil inconsistently.
For procurement, think of the air system as a chain. The breaker can receive adequate pressure at the compressor yet still be starved by a restrictive hose, undersized fitting, blocked separator or unsuitable lubricator. Conversely, adding more oil cannot compensate for low delivered airflow. The TPB60 pneumatic breaker and B87C pneumatic breaker are active PerfoMax commercial destinations, but the final air-line package must be matched to the ordered model and its documented requirements.

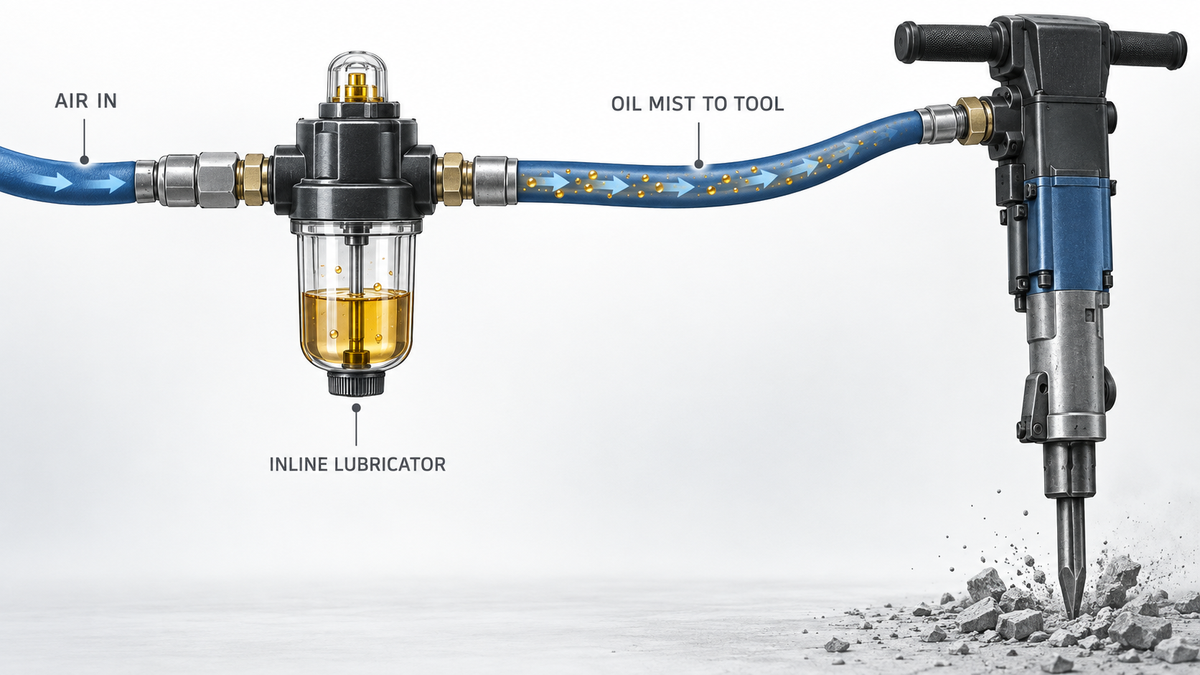

How an inline air lubricator creates oil mist
Inside a conventional air-line lubricator, airflow and a pressure differential draw oil from the reservoir through a metering passage. The oil enters the moving air as droplets or mist and travels downstream. A sight dome or inspection window may let the operator observe metering, but its appearance is not a complete measurement of how much oil reaches the tool.
Delivery depends on more than the adjustment knob. Airflow through the device, oil viscosity, temperature, reservoir level, internal condition, hose routing and downstream distance can all affect transport. A setting copied from another rig can therefore be wrong even when both crews use the word “jackhammer” or “breaker.”
Terms such as line oiler, fog lubricator, micro-fog lubricator and air tool lubricator are sometimes used loosely. They do not automatically describe identical droplet behavior, flow capacity or installation limits. Buyers should use the actual model number and datasheet instead of treating the names as interchangeable.
Lubricator, filter and regulator are different components
| Component | Primary job | What it does not prove | Common buying mistake |
|---|---|---|---|
| Filter or water separator | Removes specified contamination or liquid water within its rated conditions | Correct downstream pressure, flow or lubrication | Assuming every filter removes all moisture and oil aerosols |
| Pressure regulator | Controls downstream pressure within its operating envelope | Adequate dynamic airflow at the breaker | Selecting by port thread alone |
| Inline lubricator | Meters approved oil into the air stream | Water removal, pressure control or internal tool condition | Using one generic feed setting for every tool |
| Hose and coupling set | Carries air and provides a secure connection | That the bore and pressure rating suit the complete system | Matching only the visible thread or coupling profile |
| Breaker inlet and internal passages | Distributes air and lubricant inside the tool | That oil is reaching every required surface correctly | Diagnosing weak blows as a lubrication problem without testing the air supply |
Placement: close enough to deliver, accessible enough to service
There is no defensible universal mounting distance for every pneumatic breaker. Oil transport changes with lubricator design, hose length and internal diameter, elevation, bends, temperature, duty pattern and airflow. The maximum or recommended distance in the lubricator and breaker documentation should therefore be treated as a compatibility requirement, not a suggestion.
The unit also needs a safe service location. Operators must be able to isolate the air supply, release stored pressure and refill or inspect the reservoir without standing in a hazardous position. A convenient mounting point is not acceptable if it creates unsupported hose loads, exposes the bowl to impact, reverses the flow direction or encourages servicing while pressurized.
Placement questions for a site drawing
- Which side is the air-source inlet, and is the flow arrow visible after installation?
- What hose length, internal diameter, elevation change and coupling set exist downstream?
- Is the lubricator approved for the intended orientation and outdoor conditions?
- Can the reservoir be inspected and refilled only after safe isolation and depressurization?
- Will one lubricator feed one breaker, or does the proposal assume multiple tools?
Oil selection is part of compatibility
Use the oil grade and product type specified for the exact breaker, adjusted only where the manufacturer provides a documented temperature or climate alternative. Viscosity affects how oil is drawn through the metering passage and transported through the hose. Additives can also affect seals, deposits, exhaust conditions and wear. Two oils that look similar in a container are not necessarily substitutes.
Compressor carryover is not a controlled replacement for a line lubricator. Carryover varies with compressor design, condition, separation equipment and operating state; it also may be an unwanted contaminant. Likewise, engine oil, hydraulic oil and general-purpose workshop oil should not be substituted by appearance or availability. When environmental rules restrict exhaust oil mist, the project should resolve that requirement during equipment selection rather than after delivery.
Feed adjustment: verify the result, not a copied number
A lubricator may have a metering screw, sight dome or other adjustment indicator. That does not create one universal “drops per minute” value. The correct starting and verification procedure must come from the breaker and lubricator instructions. Record the tool model, lubricator model, oil, ambient conditions and adjustment basis so the setup can be repeated and audited.
Possible signs of insufficient lubrication include abnormal friction, elevated temperature, accelerated internal wear or dry-looking exhaust evidence when an approved inspection method calls for it. Excessive lubrication can produce heavy oil discharge, unnecessary consumption, contamination around the exhaust or sluggish behavior. None of these signs is conclusive by itself. Low airflow, water ingress, worn internal parts, a blocked passage or unsuitable oil can overlap with the same symptoms.
If performance changes, measure the delivered air conditions using the approved test method before turning the lubricator up as a default response. Lubrication should not be used to hide a restrictive hose, leaking connection or worn breaker.
Safe refill and inspection boundary
Compressed air can store hazardous energy. Before opening a reservoir, loosening a coupling or moving the lubricator, shut off the supply, isolate the branch and bleed trapped pressure according to the site procedure and equipment instructions. Never assume that a stopped breaker means the line is depressurized.
The UK Health and Safety Executive’s HSG39 guidance on compressed-air safety addresses hazards from compressed-air systems. In the United States, OSHA 1926.302 covers requirements for pneumatic power tools, including hose and tool connection controls. ISO 4414:2010 provides general rules and safety requirements for pneumatic fluid-power systems. These sources establish safety context; they do not replace the manuals or the site risk assessment.
Buyer and RFQ checklist
A complete inquiry should let the supplier evaluate the air tool and the service components as one system. Include:
- breaker manufacturer, model, suffix and current manual revision;
- air-inlet connection and the complete hose/coupling arrangement;
- required operating pressure and air consumption, including whether values are measured at the tool or stated at the source;
- hose internal diameter, total length, elevation change and expected number of simultaneous tools;
- lubricator model, port connection, rated flow basis, approved orientation and documented downstream-distance limit;
- specified oil, available oil at site, ambient temperature range and duty pattern;
- condensate, filtration and water-management arrangement upstream;
- coupling retention, whip-restraint and isolation provisions required by the site;
- spare bowls, seals, metering parts and oil quantities needed for the service interval;
- requested evidence: datasheets, manuals, compatibility statement, packing list and inspection records.
For replacement orders, photographs are useful but should accompany measurements and model references. A matching thread does not confirm sufficient flow capacity, bowl material suitability, pressure rating or oil-delivery behavior.
Common mistakes and their consequences
Installing the unit backwards
The pipe connections may still fit, but the internal metering principle was designed for one flow direction. Check the arrow rather than assuming the bowl position indicates inlet and outlet.
Copying a generic feed rate
A number taken from another tool ignores differences in airflow, oil, climate and hose layout. Use documented settings and a model-specific verification method.
Confusing lubrication with air preparation
Oil addition does not remove liquid water or hold pressure constant. Specify filtration, condensate control, regulation and lubrication as distinct functions.
Placing the lubricator far upstream without verification
Oil may not be transported to the breaker as expected. Confirm the permitted location and downstream arrangement from the actual documentation.
Opening the reservoir under pressure
This exposes personnel to stored energy and expelled oil or components. Isolation and depressurization are mandatory process steps, not optional precautions.
Frequently asked questions
Does every pneumatic breaker need an inline lubricator?
Many breakers require continuous air-line lubrication, but the exact method is model-specific. Some systems use a portable line oiler, while another approved arrangement may be specified. Confirm the breaker manual rather than assuming one configuration fits all tools.
Where should a jackhammer or breaker lubricator be installed?
Install it in the approved direction, orientation and distance from the tool, with safe access for isolated servicing. Hose length, elevation and lubricator design affect delivery, so there is no universal placement distance.
Can compressor oil replace pneumatic tool oil?
No assumption should be made that compressor carryover provides the correct amount or type of lubrication. Use the oil specified for the breaker and lubricator. Treat carryover as a separate air-quality issue.
How many drops per minute should an air-line lubricator deliver?
There is no universal value. Follow the exact breaker and lubricator instructions, then verify delivery using the approved method under real operating airflow and temperature.
Why is the breaker still weak after increasing lubrication?
Weak impact can also result from inadequate delivered airflow, pressure loss, hose restriction, leakage, water, internal wear or a blocked passage. Test the air system and inspect the tool instead of treating oil adjustment as the sole diagnosis.
