Pneumatic Breaker Chisel Receiving Inspection: Shank, Straightness, Tip and Packing Checks

Short answer: accept a pneumatic breaker chisel batch only after confirming identity, shank geometry, overall length, straightness, visible condition, working-end profile, marking, quantity and packing against the approved purchase specification. Do not approve the lot because the chisels “look heavy” or slide into one breaker. A tool can enter the chuck and still have the wrong guide diameter, collar position, retainer interface, heat-treatment condition or batch traceability.

The inspection plan must be agreed before shipment. There is no universal hardness number, straightness limit or dimensional tolerance that safely applies to every pneumatic breaker, pick hammer and working-tool design. Use the breaker manufacturer’s tool drawing, an approved master sample, the supplier’s controlled drawing and the purchase contract as the acceptance basis.

Start by defining the inspection lot and acceptance basis

A receiving inspection is meaningful only when the buyer knows which pieces belong to the same lot. Separate chisels by purchase order, item code, shank specification, working-end type, nominal length, supplier batch and packing case. Mixing two shank variants into one sample can hide a systematic error.

Before opening the first case, assemble these documents:

• purchase order and commercial packing list;
• approved product drawing and revision;
• breaker model or accepted shank reference;
• approved pre-production or golden sample, if used;
• inspection and sampling plan;
• supplier batch identification and inspection report;
• agreed material or heat-treatment evidence, where contractually required;
• packing, corrosion-protection and marking requirements.

If any controlling document is missing or revisions conflict, place the lot on hold. Measuring first and deciding the specification afterward creates an argument, not an inspection.

Eight receiving checks for pneumatic breaker chisels

1. Verify identity before measuring dimensions

Start with what the batch claims to be. Compare the case label, bundle tag and individual marking with the purchase order. The minimum useful identity normally includes the buyer or supplier item reference, working-end type, shank reference, nominal length and batch identifier. If permanent marking was not required, the packing system must still preserve lot identity after the outer case is opened.

Do not use names such as “jackhammer bit,” “breaker steel” or “moil point” as complete specifications. These words describe a product family or working end, not the machine interface. Review our pneumatic breaker chisel shank compatibility guide if the RFQ does not already define the hex size, guide diameter, collar, length and retainer features.

2. Check the shank as a functional interface

The shank is the highest-priority receiving dimension because it must move correctly in the breaker’s front end while remaining controlled by the retainer. A fit check in one worn machine is not enough. Worn bushings can accept an oversized, undersized or incorrectly shaped tool that would not work correctly in an in-tolerance breaker.

Measure only the features shown on the approved drawing. Depending on the design, these may include:

• hex across-flats or round shank diameter;
• guide diameter and guide length;
• shank length from striking end to collar datum;
• collar diameter, width and position;
• retainer notch, flat or shoulder geometry;
• end-face condition and edge radii or chamfers.

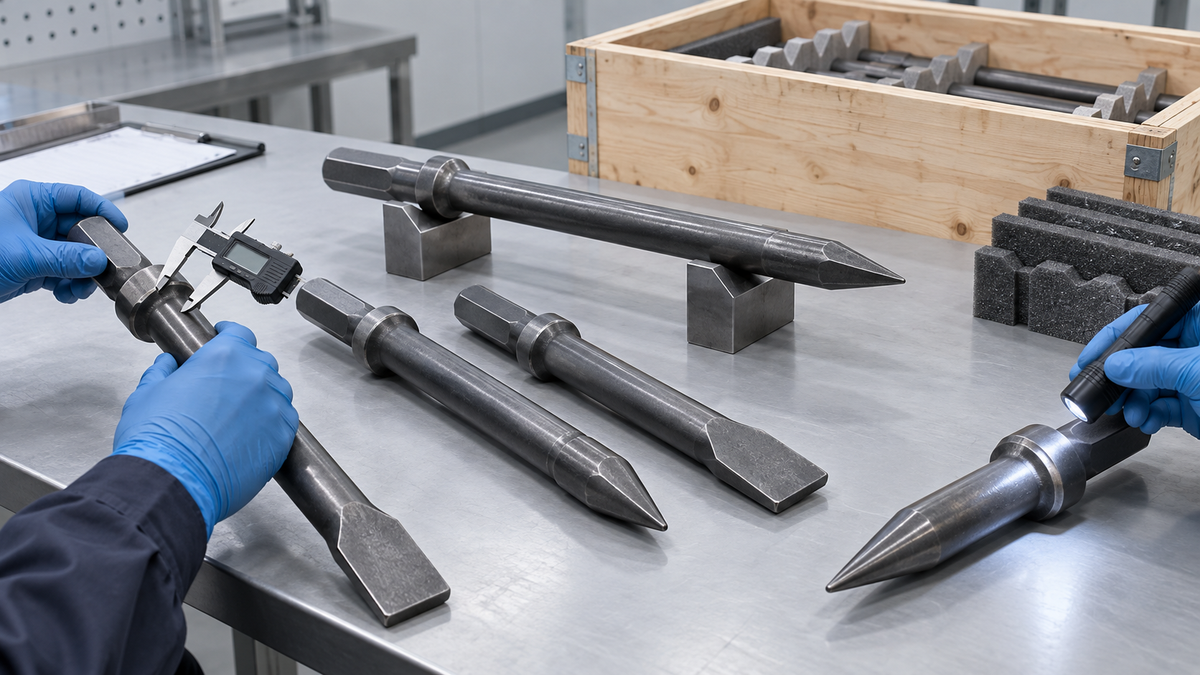

Record the measuring instrument ID and its valid calibration status. For hexagonal sections, define where measurements are taken and whether multiple orientations are required. A single caliper reading cannot reveal taper, ovality or local deformation along the entire guide surface.

3. Inspect straightness without inventing a tolerance

A long chisel may be visibly bent, but marginal straightness requires a repeatable method. Support the tool at defined points, rotate it and measure runout at the agreed location, or use the inspection method specified on the drawing. The supports, datum surface and measurement position must be consistent from one piece to the next.

Do not roll a chisel casually across a rough floor and treat the result as a final acceptance test. That may reveal a severe bend, but it does not produce a controlled measurement. If the contract has no straightness requirement, record the finding and request disposition instead of creating a limit after delivery.

4. Separate cosmetic conditions from critical defects

Inspect cleaned surfaces under adequate lighting. Pay particular attention to the striking end, transition radii, collar, retainer area, guide section and working-end transition. These regions experience contact, impact or stress concentration during use.

Classify observations before the inspection begins:

• Critical: a condition that can create an immediate safety or retention risk, such as a visible crack or an incorrect retainer interface.
• Major: a condition likely to prevent fit, function, traceability or agreed service, such as a wrong shank dimension, excessive bend or mixed tool type.
• Minor: a limited appearance or packing deviation that does not affect fit, function or traceability under the agreed specification.

Surface color alone does not prove material grade or heat-treatment quality. Light preservative staining is not the same as active corrosion; dark forged or heat-treated appearance is not evidence of hardness. Use the agreed defect catalogue, photographs and controlled sample to keep decisions consistent.

5. Confirm the working end matches the order

A moil point, flat chisel, asphalt cutter and clay spade perform different jobs. Verify the end type, profile, width and orientation against the drawing or master sample. Check for obvious asymmetry, damaged edges, incomplete forging, deep grinding marks or an incorrect transition into the body.

Do not reject a point because it does not look razor-sharp unless the approved specification requires that condition. Breaker tools are impact tools, and working-end geometry must be judged against the designed profile—not woodworking-chisel expectations.

6. Treat hardness and heat-treatment records as controlled evidence

Buyers often ask for “hardness testing” without defining location, method, surface preparation, number of readings or acceptance range. That request is incomplete. Hardness can vary deliberately along an impact tool, and a reading at the wrong location can be meaningless or damaging.

If hardness is a purchase requirement, the contract should identify:

• test method and applicable procedure;
• test locations and surface preparation;
• required range at each location;
• sample quantity per heat or batch;
• instrument calibration and report format;
• how tested pieces will be marked or handled;
• disposition when one reading is out of range.

The same principle applies to material certificates and heat-treatment records. A certificate is useful only when its heat or batch reference can be traced to the delivered chisels. Do not accept an undated generic certificate as proof for a specific shipment.

7. Use a sampling plan that matches the risk

A sampling plan must state the lot size, random-selection method, inspection level, defect classes and acceptance/rejection numbers. “Check a few pieces” is not a reproducible plan. For recurring lot-by-lot inspection, buyers may use a recognized attribute-sampling framework such as ISO 2859-1:2026, provided the contract identifies the chosen scheme and parameters.

Sampling does not transfer responsibility for specification control to the inspector, and it does not guarantee that every uninspected item is conforming. Use 100% checks for characteristics whose risk, contract or regulatory context requires them. Tighten inspection when supplier performance deteriorates, mixed lots appear or the same defect recurs.

8. Perform a controlled fit check, not an improvised impact test

If the purchase plan requires functional evidence, use an in-tolerance reference breaker, reference bushing/retainer fixture or approved gauges. Confirm insertion, free movement where designed, positive retention and removal without abnormal force. Record the breaker or fixture identity.

Do not connect air and run a newly received chisel merely to “see whether it works” unless a documented safe test procedure, guarded area and authorized operator are in place. The U.S. OSHA rule for pneumatic power tools requires safety clips or retainers to be securely installed and maintained on pneumatic impact tools to prevent attachments from being accidentally expelled; see 29 CFR 1926.302(b). Local law and the breaker manufacturer’s instructions remain controlling.

Check packing before the evidence disappears

Photograph the unopened case, external labels, seals, moisture damage and internal arrangement before removing the tools. Long forged tools can strike each other during transport if separators fail. Check that:

• individual tools or layers are separated as agreed;
• rust-preventive treatment is present where specified;
• working ends and shanks cannot damage adjacent pieces;
• the case supports the shipment without loose movement;
• case and bundle labels remain legible and match documents;
• mixed item codes or batches are physically separated;
• gross and net quantities reconcile with the packing list.

Keep packaging evidence until the lot is accepted. If damage is concentrated at one end of the case, transport handling may be relevant to the claim.

Use an accept, hold or reject decision—not a vague pass/fail

Do not mix rejected pieces back into acceptable stock. Tag and segregate them immediately. For cracks, mushrooming or failure patterns found after service begins, use the separate breaker chisel failure-pattern guide; receiving acceptance and field failure analysis are different investigations.

Common buyer mistakes

• Ordering by breaker nickname instead of a controlled shank drawing.
• Using one worn breaker as the only fit gauge.
• Approving the batch from one visually perfect sample.
• Requesting a hardness certificate without test location or batch linkage.
• Setting sampling rules after defects are found.
• Ignoring straightness because the shank dimensions pass.
• Discarding labels and packing before documenting transit damage.
• Accepting mixed item codes because the working ends look similar.
• Confusing cosmetic surface color with material or heat-treatment evidence.

Pre-purchase specification checklist

The easiest receiving inspection starts with a precise RFQ. Before ordering, send the supplier:

• breaker make and exact model;
• shank drawing or approved reference sample;
• working-end type and profile drawing;
• overall length and all controlled dimensions with tolerances;
• material and heat-treatment requirements, if applicable;
• hardness method, locations and limits, if required;
• marking and batch-traceability requirements;
• sampling plan and defect classification;
• inspection-report and certificate requirements;
• rust protection, separators, case design and label format;
• sample approval process before bulk production.

For the complete machine and accessory package, compare this consumable-focused checklist with our pneumatic breaker pre-shipment inspection guide.

Frequently asked questions

Can I accept a chisel if it fits into the breaker?

No. Fit in one breaker confirms only a limited part of compatibility. Verify the controlled shank dimensions, collar and retainer geometry, straightness, identity and condition against the approved specification.

What hardness should a pneumatic breaker chisel have?

There is no safe universal answer for every tool design and test location. Use the value, method and location specified by the breaker/tool manufacturer or agreed engineering drawing. A single unspecified hardness number can create a misleading acceptance result.

Should every chisel in the shipment be measured?

That depends on the risk, contract and sampling plan. Critical characteristics, new suppliers, mixed lots or recurring defects may justify broader or 100% inspection. A recognized sampling plan can be used for suitable attribute checks when its parameters are agreed in advance.

Is light surface rust an automatic rejection?

Not automatically. Evaluate location, depth, area, whether dimensions or surface integrity are affected, and the agreed visual standard. Heavy corrosion, pitting or loss of traceability requires a different response from light removable staining.

What evidence should be kept for a claim?

Keep the purchase specification, drawing revision, case and label photos, packing list, batch markings, measurement records, instrument IDs, defect photos, sample selection record and segregation details. Preserve representative nonconforming pieces until disposition is agreed.

Make the chisel specification inspectable before placing the order

Receiving inspection cannot repair an incomplete RFQ. Define the breaker interface, working-end geometry, dimensions, traceability, sampling, test evidence and packing before production starts. Then the buyer and supplier can decide acceptance from the same evidence instead of debating product names after delivery.
