Quick answer: accept a pneumatic-breaker air-hose assembly only when its identity, order-specific hose bore, working-pressure and temperature ratings, material, length, end connections, locking or restraint provisions, physical condition and documents all match the approved purchase specification. A hose that merely looks new is not proven compatible. If a pressure or leak test is required, it must be defined in the contract and performed by competent personnel with controlled equipment; an improvised receiving test is not a safe substitute.
This guide is for mines, quarries, contractors and distributors receiving air-hose assemblies for pneumatic breakers. It is an inspection and procurement-control workflow, not a universal design certificate or a replacement for the breaker, compressor, hose and coupling manufacturers' instructions. Local law and site rules may require additional controls.
Why the hose assembly must be inspected as a system
The hose does more than carry compressed air. Its internal diameter, length and condition influence the pressure and flow that reach the breaker. Its couplings, seals, clamps or ferrules, locks and restraints affect whether the connection remains secure. A hose tube may have an adequate rating while a fitted coupling, clamp or adaptor creates the weakest point. Receiving inspection therefore has to assess the complete assembly, not just the printed hose line.
Before inspection, obtain the approved purchase order, drawing or data sheet, the intended breaker model, the compressor or manifold connection, and the supplier's declared assembly details. For a complete package, confirm that the hose is intended for the same inlet arrangement and operating conditions as the breaker. PerfoMax buyers can compare the package information with active breaker configurations such as the B87C pneumatic breaker or TPB60 pneumatic breaker, but the order-specific submittal remains the controlling document.
Receiving inspection sequence
Keep the shipment unconnected and unpressurized while completing the first inspection. Separate mixed lots, retain packaging labels and assign a lot or receipt reference so that photographs and measurements can be traced to the correct batch.
| Step | What to verify | Hold or escalate when |
|---|---|---|
| 1. Shipment identity | Purchase-order line, supplier, item code, quantity, lot or batch reference and packing list | Labels are missing, lots are mixed or the item cannot be traced to the order |
| 2. Hose marking | Manufacturer or traceable identifier, hose type, nominal bore, working-pressure declaration, applicable standard and any temperature information required by the specification | Required markings are absent, illegible, inconsistent with documents or applied only to detachable packaging |
| 3. Dimensions | Specified length, internal diameter and, where controlled, outside diameter; measurement method and tolerance must follow the order or drawing | A measured value is outside the contractual tolerance or the method cannot establish the required dimension |
| 4. Hose condition | Cover free from cuts, exposed reinforcement, blistering, flattening, severe kinks, abrasion, contamination or heat damage | Reinforcement is visible, the hose is permanently deformed, or damage reaches beyond superficial packaging scuffs |
| 5. Ends and couplings | Correct coupling profile or thread, size, seal, orientation, ferrule or clamp installation, locking feature and protective caps | Ends differ from the approved configuration, sealing faces are damaged, or retention hardware is loose or incomplete |
| 6. Restraint provisions | Specified safety clips, pins, whip restraints or other secondary controls, including attachment locations and compatibility | The order or site standard requires a device and it is missing, incorrect or cannot be attached as intended |
| 7. Cleanliness | Open ends protected; bore free from loose debris, water, rust flakes, packaging material and obvious oil contamination beyond the approved condition | Contamination may enter the breaker or the assembly cannot be inspected without dismantling |
| 8. Records and disposition | Inspection result, photographs, sample identity, instruments used, nonconformance number and release authority | Acceptance cannot be traced to a person, date, lot and approved criterion |

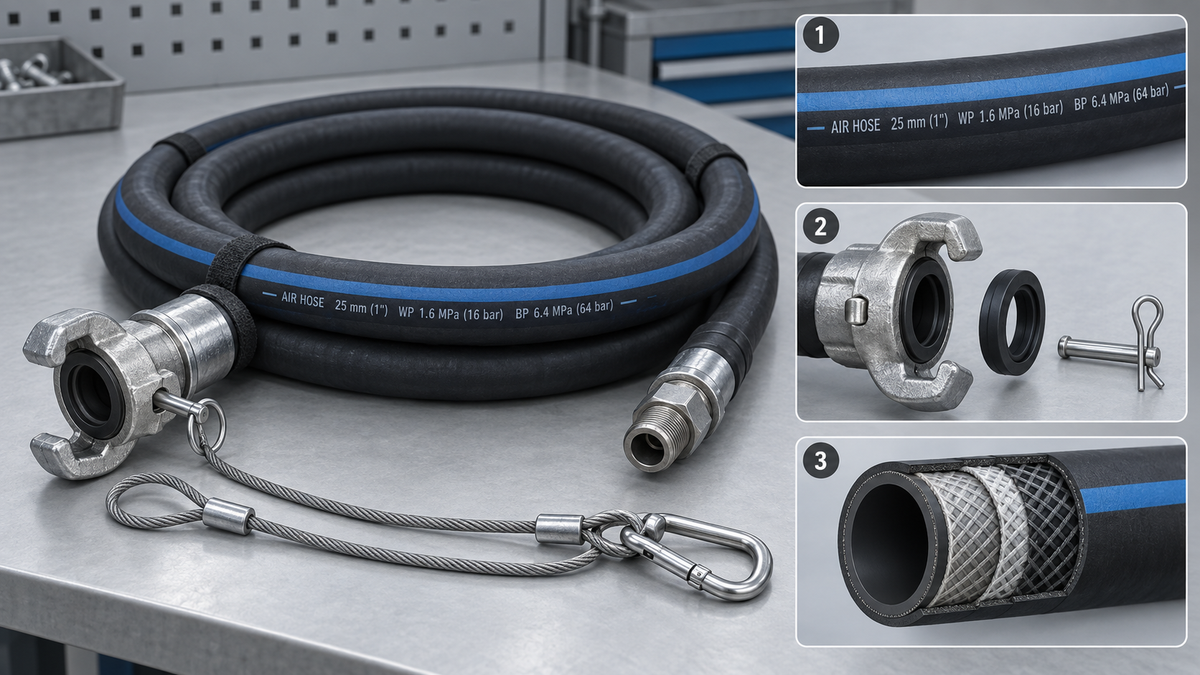

Check the marking against evidence, not appearance
Color and outside diameter are not reliable proof of hose grade, material, bore or pressure capability. Transcribe the complete marking from several assemblies and compare it with the purchase specification and supplier certificate or data sheet. If the hose is supplied to a standard, confirm the standard edition and that the purchased construction is inside its scope.
For example, ISO 2398:2024 covers specified types, classes and categories of textile-reinforced rubber hose for compressed air. It states a maximum working-pressure scope of 2.5 MPa (25 bar), with temperature limits dependent on type and category. That does not mean every pneumatic-tool hose should be accepted at that pressure or temperature. The assembly must meet the lower of its component limits and the approved system conditions, and the standard is relevant only when the ordered hose construction falls within its scope.
Do not infer an acceptable working pressure from a burst or proof-pressure figure, or create a ratio that the applicable standard and manufacturer do not authorize. Also distinguish the bare hose rating from the assembled hose rating. Couplings, ferrules, clamps, adaptors and seals can have different limits.
Verify bore, length and package compatibility
The ordered internal diameter is a functional requirement, not just a purchasing description. A restricted hose, an undersized coupling bore or an unnecessarily long run can reduce the air available at the tool. Conversely, a larger hose does not automatically solve a package problem; it may introduce incompatible fittings, excessive weight or handling issues.
Record the intended breaker model, inlet connection and manufacturer-specified air requirement. Then verify the compressor or distribution point, hose length, hose bore, connectors and any lubricator as one chain. The related guide Pneumatic Breaker Air Consumption Explained clarifies why pressure and flow declarations must be read together. For new package orders, use the Pneumatic Breaker Package RFQ Checklist before purchase so the receiving team has objective acceptance criteria.
Measure only the characteristics defined by the purchase specification. A receiving inspector can normally check overall length and accessible diameters without damaging the assembly, but should not cut a finished hose to confirm construction. If the declared internal diameter cannot be verified nondestructively, agree the evidence method in advance—for example, a controlled end measurement, supplier inspection record or approved sample.
Inspect couplings, seals and retention details
Two couplings can look similar and still have different profiles, thread forms, sizes or locking arrangements. Compare the received end connections with an approved drawing, reference sample or identified mating component. Check both ends; do not assume they are identical.
Coupling and seal checks
- Confirm the coupling family, nominal size and connection method at both the supply and breaker ends.
- Inspect claws, threads, sealing faces, pins, grooves and shoulders for cracks, deformation, burrs or coating buildup that could prevent full engagement.
- Verify the specified gasket or O-ring material and size where this is controlled. A seal that fits physically may still be unsuitable for the temperature, lubricant or environment.
- Check that ferrules, crimps or approved clamps are straight, complete and positioned according to the assembly specification. Do not accept improvised wire, mixed clamp types or unexplained rework.
- Confirm that protective plugs or caps keep contamination out during storage and transport.
Never force engagement or use air pressure to prove that unmatched connectors will hold. If the interface is uncertain, place the assembly on hold and request the manufacturer's connection identification.
Restraints and jurisdiction-specific requirements
A whip restraint, safety clip or other secondary device is not a repair for a damaged hose or incorrect coupling. Its purpose is secondary risk reduction if a connection separates; the primary connection still has to be correctly specified, assembled and locked.
The required device depends on the coupling design, local rules, site risk assessment and contract. As one jurisdiction-specific example, the U.S. construction rule in OSHA 29 CFR 1926.302 includes a safety-device requirement at the source of supply or branch line for certain air hoses above a stated internal diameter. This should not be copied as a universal global rule. Record the jurisdiction and the exact project requirement used for acceptance.
Where a restraint is specified, check its rated application, length, end loops, attachment points and condition. It should attach to suitable fixed points on both sides of the connection without interfering with full coupling engagement or normal hose movement.
Visual inspection versus pressure or leak testing
Routine receiving inspection normally begins with identity, documents, dimensions and visible condition. A pressure, proof or leak test is a separate controlled activity. Perform it only when the purchase specification or an approved inspection-and-test plan defines the test medium, pressure, duration, exclusion zone, calibrated equipment, acceptance limit and competent operator.
Do not pressurize an unidentified assembly, tighten a live connection, bend a hose to search for damage, or use hands to locate a leak. Depressurize and isolate the system before changing connections. The UK Health and Safety Executive's Compressed Air Safety guidance (HSG39) describes hazards from hose failure, loose hoses and unsafe compressed-air practices. HSE also explains that inspection frequency and scope should be based on deterioration risk and exceptional circumstances in its work-equipment inspection guidance.
If testing is contracted, identify every tested assembly or sample and retain the result with equipment calibration records. Passing a controlled leak test does not cancel a marking, material or compatibility nonconformance.
Sampling and acceptance records
There is no universal sample size for every hose shipment. Set the plan from risk, order quantity, supplier history, contractual inspection level and the consequence of a failure. Quantity, item identity and obvious critical damage are often suitable for 100% checks when the contract requires them. Dimensional or document checks may use a defined sample plan, but the plan and acceptance numbers should be agreed before the goods arrive.
At minimum, the receiving record should capture:
- purchase order, supplier, item code, lot or batch and receipt date;
- sample quantity and how samples were selected;
- required versus observed markings and dimensions;
- coupling, seal, lock and restraint configuration at both ends;
- photographs of the complete assembly, markings, end fittings and any defect;
- inspection tools and calibration status where measurements determine acceptance;
- accepted, conditionally held or rejected quantity, with the approving person;
- nonconformance and supplier-response reference for any discrepancy.
Do not blend rejected or unidentified assemblies back into accepted stock. Mark the physical hold area and the inventory record so that site personnel cannot issue the hose while the discrepancy is being resolved.
Common receiving mistakes
- Accepting by color or apparent diameter: neither proves construction, bore or rating.
- Checking only one end: breaker-end and supply-end connectors can differ, and either can make the package unusable.
- Treating a hose rating as an assembly rating: the fitted connection may have a lower limit or a separate installation requirement.
- Using a restraint to excuse poor engagement: secondary retention does not correct mismatched, damaged or unlocked couplings.
- Informal pressure testing: an improvised test can expose personnel to stored energy and still produce unusable acceptance evidence.
- Losing lot traceability: mixed lots prevent targeted containment when a defect is later found.
RFQ details that make receiving inspection objective
Put acceptance evidence into the RFQ rather than asking the warehouse to interpret a generic description after delivery. Specify:
- intended pneumatic-breaker model and inlet connection;
- approved operating conditions and manufacturer-declared air requirement;
- hose construction or applicable standard, nominal bore, length and contractual tolerances;
- required working-pressure and temperature ratings for the complete assembly;
- abrasion, weather, oil or other environmental conditions relevant to the site;
- coupling family, size and material at each end, including seals and locking hardware;
- required restraint or safety device and its attachment arrangement;
- permanent marking, lot traceability, certificate and inspection-record requirements;
- packaging, caps, storage conditions and shipment identification;
- sampling plan and any controlled test requirement, including who performs and witnesses it.
Frequently asked questions
What markings should be present before an air hose is accepted?
Use the purchase specification as the checklist. Common controlled fields include a traceable manufacturer or item identifier, hose type, nominal bore, working-pressure declaration, applicable standard and required temperature information. Missing information is not automatically cured by a packing label; request traceable supplier evidence and hold the item until the contract requirement is resolved.
How do I match hose diameter and couplings to a pneumatic breaker?
Start with the breaker's approved inlet connection and manufacturer-declared pressure and air demand. Verify the complete flow path: compressor or manifold, hose length and internal diameter, coupling bores, lubricator and adaptors. Match connector profile, size, thread or claw form, seal and lock using identified drawings or components—not visual similarity alone.
Does every pneumatic-breaker coupling need a whip restraint?
Requirements vary by connector design, jurisdiction, contract and site risk assessment. Follow the applicable local rule and project standard. When a restraint is required, it must be compatible and correctly attached, but it never replaces a sound primary coupling.
Can a new-looking hose be accepted without rating evidence?
Not when the approved order requires rating or traceability evidence. Appearance cannot confirm the reinforcement, material, working pressure or temperature capability. Quarantine the assembly and obtain verifiable documents or markings before release.
Should the receiving team pressure-test every hose assembly?
Not by default. Pressure or leak testing introduces stored-energy hazards and needs a defined procedure, equipment, exclusion controls and competent personnel. Test only when the contract or approved inspection plan requires it; otherwise complete the specified identity, document, dimensional and visual checks and escalate uncertainty.
Request an order-specific hose and breaker package review
For an overseas project or distributor order, send PerfoMax the breaker model, compressor data, required hose length and bore, both connection details, operating environment, local safety requirements and requested inspection evidence. Request a quotation so the hose, couplings, restraints and breaker can be reviewed as one package before production and shipment.
Technical references: ISO 2398:2024; HSE HSG39, Compressed Air Safety; OSHA 29 CFR 1926.302; and HSE work-equipment inspection guidance. Apply the edition, jurisdiction and product scope stated by each source.
