An H22 tapered drill connection is a matched, threadless joint between the conical end of a drill rod and the internal taper of a drill bit. When the bit is seated correctly, contact along the mating taper surfaces creates the friction and support needed to transfer repeated impact, rotation and flushing flow. The designation H22 usually identifies a nominal 22 mm hexagonal drill-steel section, but it does not by itself prove the shank length, taper angle, bit socket or rock-drill compatibility.
The practical rule is: match the complete chain—rock drill chuck, shank, rod section, rod taper and bit taper—from controlled drawings or confirmed samples. A bit that slides onto a rod is only a candidate fit. Correct seating, contact and retention must still be verified.
The connection in one view
The drill string has two different interfaces that are often confused:
| Location | Typical H22 function | What must match |
|---|---|---|
| Machine end | The hexagonal shank enters the rock-drill chuck or chuck bushing | Hex size, shank length, collar/retainer geometry and machine model |
| Bit end | The rod's conical end seats inside the tapered socket of a detachable bit | Taper designation, contact geometry, socket condition and flushing path |
The machine-end shank receives piston blows and rotation from the rock drill. The rod carries those loads toward the hole. At the bit end, the taper joint passes the load into the bit body and carbide cutting structure. Air or water can travel through the rod's central flushing passage and exit through the bit, depending on the configured system.
What H22—and H22 × 108 mm—actually tell you
In common small-hole rock-drilling terminology, H22 describes a hollow hexagonal drill-steel section with a nominal dimension of 22 mm across flats. Suppliers may also write Hex 22, Hex22 or B22. The additional expression H22 × 108 mm is commonly used for a machine-end shank configuration: the H22 hex section combined with a nominal 108 mm shank length.
That shorthand is useful, but incomplete. It does not automatically identify:
- the exact rock-drill model or chuck-bushing geometry;
- the collar, retainer or striking-face details;
- the drill rod's overall or effective length;
- the taper angle or the supplier's angle-measurement convention;
- the matching bit socket and bit diameter;
- the flushing-hole diameter and alignment;
- manufacturing tolerances or wear limits.
ISO 1718 covers basic dimensions for drill rods and tapered connections used in percussive drilling, but a purchase decision still needs the actual manufacturer drawing and the mating components. If the machine-end identity is your main question, use the H22 × 108 mm compatibility guide.
How the taper holds the bit without threads
A tapered rod end and a matching bit socket form a wedge-like contact. As the parts are driven together, the mating surfaces develop normal contact pressure. Friction produced by that contact resists relative sliding and rotation. The joint therefore does not need a thread to retain the bit during normal drilling.
The connection is not simply “tight because the hole is smaller.” It depends on the two conical surfaces sharing the intended angle and reaching the intended contact position. If the angle, surface condition or dimensions are wrong, the joint may touch only near the mouth or near the bottom of the socket. That small contact band concentrates load instead of distributing it along the designed surface.
Repeated percussion can seat a correctly matched taper more firmly. That is useful during drilling, but it also means removal requires a controlled release method. The taper should be understood as a working joint, not as a loose slip fit and not as a permanent press fit.

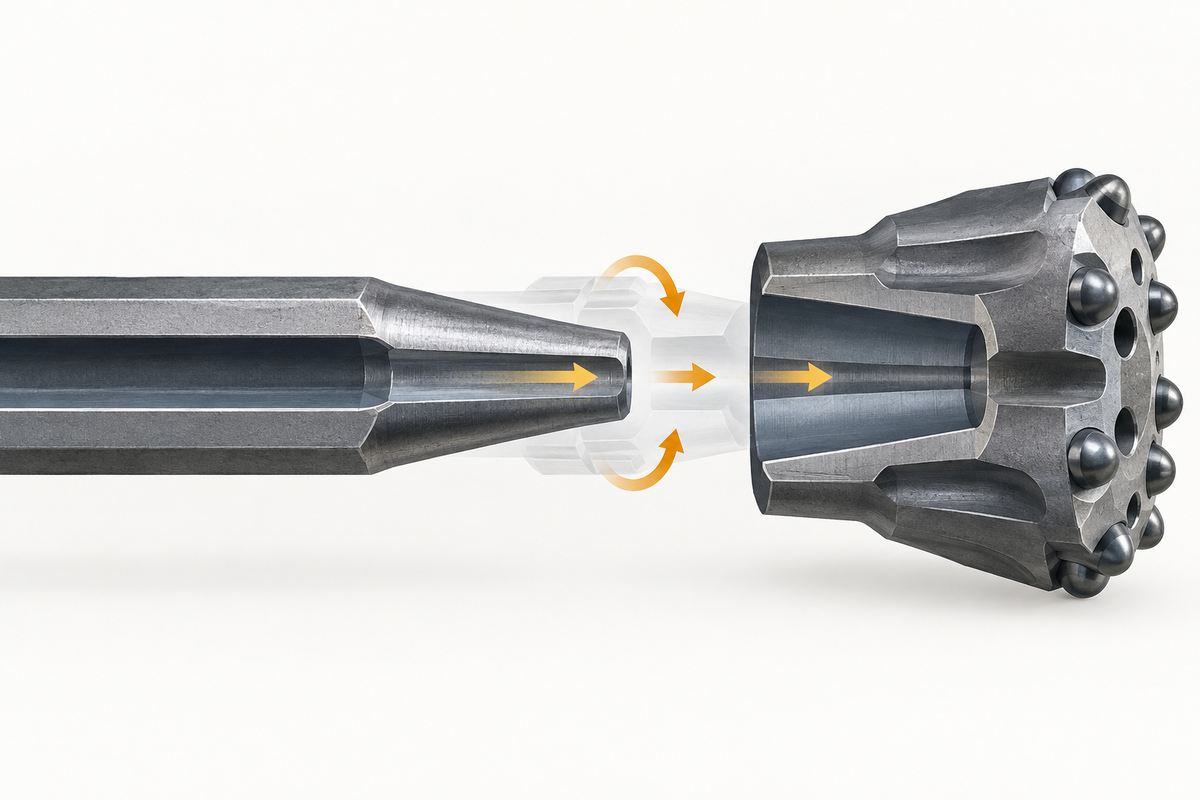

How impact, rotation and flushing cross the joint
| Function | Path through the connection | What disrupts it |
|---|---|---|
| Impact | A compressive stress wave travels through the rod and across the seated taper into the bit body | Partial contact, damaged seating surfaces, cracks, severe deformation or a loose joint |
| Rotation | Friction and contact at the mating taper transfer torque from rod to bit | Wrong angle, contamination, polishing, wear or inadequate seating |
| Flushing | Air or water passes through the rod bore, into the bit passage and out through flushing holes | Misalignment, debris, blocked holes or an incompatible internal geometry |
These three functions happen at the same time, but they should be checked separately. A connection can appear mechanically tight while its flushing passage is restricted. A bit can also receive flushing while still having poor surface contact. Visual assembly alone does not validate the full system.
Why taper angle must be treated as a system designation
Commercial tapered tools are commonly offered with designations such as 7°, 11° and 12°. Those labels must match between rod and bit, and the supplier must confirm how the angle is defined on its drawing. Do not infer compatibility because two products are both described as “H22.” H22 identifies the steel section; the taper designation identifies a different interface.
Changing the taper changes where and how the surfaces contact. A mismatched pair may:
- bottom before developing the intended contact band;
- grip only at the entrance of the bit socket;
- seat too deeply or not deeply enough;
- run eccentrically and disturb hole control;
- loosen, crack or become abnormally difficult to remove.
Use the 7° vs 11° vs 12° compatibility guide when selecting or replacing a taper family. This page explains the connection principle; it is not a substitute for that selection check.
What correct seating should look like
A controlled acceptance check should compare a known rod and bit pair, not rely on one visual cue. Review these points:
- Identity: markings, purchase description and drawing reference agree on H22, shank configuration and taper family.
- Clean surfaces: the rod taper and bit socket are free from rock fines, burrs, heavy corrosion and embedded metal.
- Axial alignment: the bit enters squarely and does not visibly cock to one side.
- Seating position: the bit reaches a consistent position compared with an approved reference pair; it does not obviously bottom or stop at the socket mouth.
- Contact pattern: an approved contact-check method shows a distributed band rather than a narrow edge contact. Use the supplier's method and acceptance rule.
- Flushing continuity: the configured passage is open and correctly aligned before drilling.
- Controlled trial: the assembly is tested under the machine and site procedure, then inspected for looseness, abnormal marking or heat.
Do not create an improvised pass/fail dimension from a photograph. The exposed gap between the rod shoulder and bit can vary by design and wear; compare it only with a controlled drawing or known accepted sample.
Four failure patterns explained by the connection principle
The bit keeps coming loose
Possible causes include a taper mismatch, contamination, incomplete seating, worn or polished mating surfaces, excessive runout, poor collaring or a damaged socket. More force is not a diagnosis. Use the loose H22 tapered bit troubleshooting guide to isolate the cause.
The bit is unusually hard to remove
A correctly matched joint can tighten during percussive work. Excessive difficulty may also indicate over-seating, damaged surfaces, deformation, corrosion or an incompatible pair. Stop and inspect rather than heating the bit or striking carbide and thin edges.
There is fretting or a bright narrow ring
A narrow polished or fretted band can indicate concentrated contact or micro-movement. Record where the mark appears on both parts. The pattern is evidence for a compatibility or wear review, not proof of one root cause by itself.
The hole wanders or the bit runs visibly off-axis
Check collaring, rod straightness and chuck condition first, then inspect taper seating and bit symmetry. A tilted or partial taper contact can contribute to runout, but the complete drill, rod and bit chain must be assessed.
Installation and removal boundaries
Before assembly, identify the correct rod and bit, clean both mating surfaces, and inspect for cracks, burrs and deformation. Do not add grease, abrasive compound or an improvised shim unless the tool supplier explicitly specifies it. Lubrication that is appropriate elsewhere in the rock drill may change the holding behavior of a taper joint.
For removal, stop the drill, isolate and depressurize the air supply, support the rod and bit, and use the approved bit-removal or knock-off tool and procedure. Keep hands and bystanders away from the release path. Do not heat the bit, weld attachments to it, strike carbide buttons, or use an uncontrolled lever. The exact method must follow the rock-drill, rod and bit supplier and the site's safety procedure.
Buyer terminology checklist
For an RFQ, purchase order or replacement request, state all of the following:
- rock-drill manufacturer, model and current chuck or chuck-bushing reference;
- shank designation, including H22 × 108 mm only when verified;
- taper designation and the supplier drawing or catalog reference;
- rod type, overall/effective length and quantity;
- bit style and diameter required for the hole program;
- flushing medium and passage requirements;
- photos of markings, shank, taper, socket and an assembled accepted sample;
- whether the order must match an existing installed fleet;
- inspection evidence and the sample-approval plan.
Review the active Drill Rods collection, then request a configuration review with the complete interface record. PerfoMax should confirm the supplied configuration before the order is released; a generic H22 label is not enough.
FAQ
What does H22 mean on a drill rod?
It commonly identifies a hollow hexagonal drill-steel section with a nominal 22 mm across-flats dimension. It does not by itself define shank length, taper angle, rod length, bit socket or machine compatibility.
What does H22 × 108 mm mean?
It is commonly used to describe an H22 hex shank with a nominal 108 mm machine-end shank length. Confirm the exact datum, collar and retainer geometry from the machine or supplier drawing.
How does a tapered drill bit stay on without threads?
The matching conical surfaces seat together and develop contact pressure. Friction at that contact carries torque and resists separation during normal drilling, while impact repeatedly loads the seated joint.
Can a 7° bit be used on an 11° or 12° rod?
No substitution should be approved from appearance alone. The rod and bit taper designations and drawing conventions must match. A mismatched pair can develop partial contact, poor retention or abnormal stress.
Should the taper be greased before fitting the bit?
Do not assume so. Follow the specific supplier's instructions. Grease or other compounds can change friction and seating behavior and may trap abrasive contamination.
