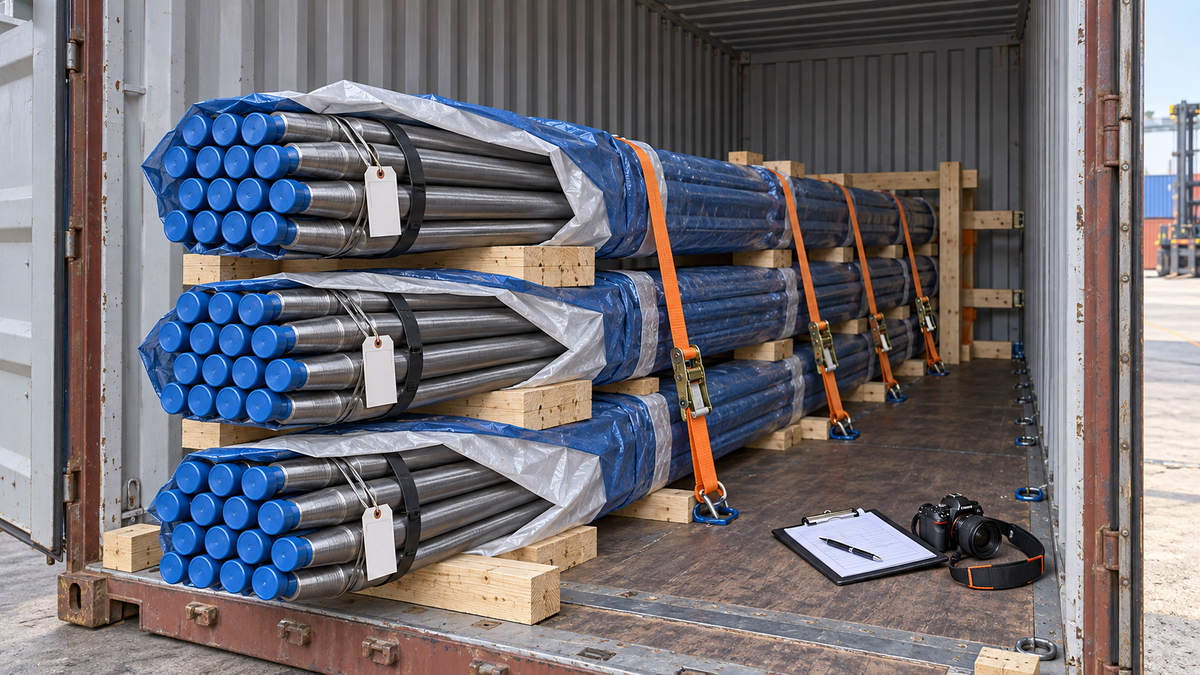

Export Packing for H22 Tapered Drill Rods: Bundling, Rust Protection, Labels and Container Loading

Direct answer: an export pack for H22 tapered drill rods should keep the rods identifiable, dry, straight, separated from damaging contact and restrained against movement from the factory packing point to the buyer's unloading area. The purchase order should define the rod identity, bundle mass limit, corrosion-protection method, end protection, label content, handling points, container plan and required packing evidence before production starts.

No single bundle design, desiccant quantity or lashing pattern is correct for every order. Rod length, bundle mass, voyage duration, climate, container type, handling equipment and destination rules change the solution. Cargo securing and container floor loading must be checked by a competent packing or freight professional using actual weights and the selected transport unit—not copied from a photograph or a previous shipment.

What a complete H22 drill rod export pack must control

The IMO/ILO/UNECE CTU Code provides global guidance for packing and securing cargo transport units across sea and land transport. It does not supply a universal drill-rod lashing recipe; it establishes a planning framework for safe packing, load distribution, securing, documentation and unpacking.

Freeze the packing specification before the rods are bundled

“Export packing included” is not an inspectable requirement. State the transport and receiving conditions that the pack must survive. At minimum, the supplier and buyer should agree:

• exact H22 rod item code, shank designation, taper angle and length;
• pieces per bundle and maximum gross mass per handling unit;
• whether different lengths, tapers or batches may share one case or container;
• planned transport mode, expected storage interval and container type;
• temporary rust-preventive material and any cleaning needed before use;
• end caps, separators, wrapping, dunnage and outer protection;
• lifting, fork-entry and unloading constraints at destination;
• label fields, languages, barcodes or buyer item references;
• wood-packaging compliance required by the destination, when timber is used;
• loading, securing, photography and document deliverables.

Commercial packaging standards can help structure the contract. ASTM D3951-18(2023), for example, covers commercial preservation, packaging, packing, unitization and marking when it is specified by the contract. It is a reference framework, not automatic approval of any particular bundle.

Prepare the rods before applying corrosion protection

Wrapping wet, dirty or warm rods can trap the conditions that the package is meant to prevent. Before packing, verify that the rods match the released order, are dry and are free from loose scale, abrasive debris and handling damage. Inspect the taper, shank, collar, transitions and flushing openings before these zones are hidden by caps or wrap.

The temporary corrosion system should be named in the PO or approved packing instruction. Options may include a compatible protective oil or film, VCI material, a moisture-barrier wrap, desiccant or a designed combination. The correct choice depends on surface condition, package permeability, expected climate, duration and how the buyer will clean or commission the rods. VCI film and desiccant should not be treated as interchangeable: one is a corrosion-inhibiting packaging approach, while the other manages moisture within a suitably designed enclosure.

Do not state “waterproof” unless the complete pack has a defined and verified construction. A loose outer sheet can reduce splash and dirt exposure while still allowing humid air and water to enter. Conversely, a tightly sealed barrier around damp rods may increase corrosion risk. Define the method, material, closure, inspection and repair rules.

Protect the taper, shank and flushing openings

Rod ends are functional interfaces, not convenient support points. Use caps, sleeves or separators that prevent metal-to-metal striking and contamination without deforming the taper or blocking the bore with loose material. Protection should remain removable at receiving inspection and should not hide permanent damage that existed before packing.

Where the buyer requires a preservative on a taper or shank, confirm that it is compatible with the product and that the receiving team knows how to remove it. Never use an unidentified coating as evidence that corrosion was absent before packing.

Build a bundle that supports long rods without damaging them

Long rods need support at positions selected for their actual length, mass and pack construction. The objective is to avoid excessive overhang, sagging, point loading and sliding while keeping the pack stable during lifting and unloading. Dunnage faces should be sound and arranged so that protruding fasteners, sharp edges or concentrated strap pressure cannot mark the rods.

• Keep rods parallel and use separators where layers could rub or nest unpredictably.
• Protect corners and contact zones under banding or webbing.
• Use restraint materials rated for the intended packaging duty.
• Do not describe ordinary bundle banding as certified lifting gear.
• Keep different item codes or batches physically separated and independently tagged.
• Design fork access and lifting points around the receiving site's equipment.
• Make the bundle stable after outer wrap is removed for inspection.

A bundle that is easy to load at origin can still be unsafe to unload at destination. The buyer should provide fork length, crane availability, doorway clearance and laydown-area constraints before the pack is approved.

Make each bundle traceable without opening it

Use a durable external label and, where practical, a protected duplicate. The bundle label should reconcile with the commercial packing list and product records. Useful fields include:

• purchase order and line number;
• buyer and supplier item codes;
• complete H22 shank, taper and rod-length description;
• quantity and gross/net mass as required;
• batch, heat or production reference when contractually controlled;
• bundle number, such as 3 of 12;
• destination or consignee reference;
• approved handling and storage marks;
• packing date and inspection-release reference.

Apply handling symbols only when they are relevant and understood. ISO 780:2015 specifies graphical symbols used to convey handling and storage instructions for distribution packages. Symbols do not replace written lifting instructions, mass data or a safe method statement.

Inspect the container and approve the loading plan

Before loading, check that the selected cargo transport unit is suitable for the rods and the planned route. Record the container identity and examine the floor, walls, roof, doors, locking gear, tie-down points, cleanliness, dryness, visible daylight entry and signs of previous contamination or water ingress. A damaged or wet unit should be rejected or formally assessed before product is loaded.

The loading plan should use actual bundle dimensions and verified masses. It should address total payload, floor loading, longitudinal and lateral distribution, center of gravity, door-end risk, blocking and bracing, restraint attachment points and safe unloading. The IMO cargo securing guidance emphasizes that improper stowage and securing can endanger the vessel and personnel. A supplier should not invent tie-down capacities or attach lashings to points whose rating and condition are unknown.

Separate product bundling from container restraint

Banding that holds rods together is not automatically sufficient to keep the cargo from moving inside the container. Product unitization and CTU securing are two different functions. The final loading method may require engineered blocking, bracing, friction materials, lashings or other systems selected by competent personnel for the actual load and transport chain.

Avoid direct restraint across unprotected rod surfaces. Do not nail, screw or wedge through a product contact zone. Keep doors operable without allowing a shifted bundle to press against them. If unloading requires a staged sequence, record that sequence and make it available to the receiving team.

Create a packing evidence pack before the doors close

A claim is difficult to resolve when the only evidence is one photograph of closed container doors. Require a staged record:

1. rod identity and surface condition before wrapping;
2. end protection, separators and corrosion-control materials;
3. completed bundles with all labels visible;
4. empty-container condition and container number;
5. dunnage and first bundle placement;
6. intermediate loading, blocking, bracing and restraints;
7. final load from multiple angles before door closure;
8. closed doors, seal number and dispatch document.

Retain the approved packing instruction, packing list, bundle map, material records, inspection release, photos and any freight-provider securing calculation or sign-off. The evidence should connect each bundle to the order without relying on memory or loose paper tags.

Common export-packing failures

If rods arrive with oxidation, preserve the package and container evidence before cleaning. The published H22 drill rod surface-rust receiving guide explains how to quarantine, document and distinguish removable oxidation from conditions that need technical review.

RFQ checklist for H22 drill rod export packing

• Exact rod specification, item code and controlled drawing revision
• Quantity, rods per bundle and permitted mixed-bundle rules
• Bundle maximum mass and destination handling equipment
• Temporary corrosion-protection system and removal instructions
• Taper, shank and flushing-bore end protection
• Separator, dunnage, banding and outer-wrap requirements
• Wood-treatment and destination-entry requirements, if timber is used
• Label data, language, durability and duplicate-label position
• Container type, loading plan and cargo-securing responsibility
• Empty-container inspection and rejection criteria
• Required packing, loading and seal photographs
• Packing list, bundle map and certificate/record package
• Receiving storage limits and claim-notification procedure

Use this checklist with the published H22 tapered drill rod pre-shipment inspection guide. The inspection guide verifies the rods; this guide controls how that accepted condition is preserved and evidenced during transport.

Frequently asked questions

Should H22 drill rods be sealed airtight for ocean freight?

Not by default. A sealed moisture-barrier system can be appropriate when it is designed around clean, dry product, compatible protection materials and the expected route. Sealing damp rods or using an unverified wrap can trap moisture. Specify and inspect the complete corrosion-control system instead of requesting “airtight” as a slogan.

Is VCI film or desiccant enough to prevent rust?

Neither is a universal guarantee. Performance depends on product cleanliness and dryness, enclosure design, material compatibility, package volume, exposure duration and damage during handling. The packaging supplier should define the method and placement for the actual pack, and the buyer should define how compliance will be evidenced.

What should be printed on a drill rod bundle label?

Include the PO and line, complete rod identity, quantity, bundle number, mass where required, controlled batch reference, destination and relevant handling/storage marks. The label must reconcile with the packing list and remain legible through the planned transport chain.

Can bundle straps also secure the rods inside the container?

Do not assume so. Bundle straps unitize the product; container restraints control cargo movement relative to the CTU. The competent loading plan must define blocking, bracing and restraint using actual masses, attachment points and transport conditions.

Which loading photos should a buyer require?

Require photos of pre-wrap product condition, protection materials, completed bundles and labels, empty-container condition, each major loading stage, final blocking and restraints, container number, closed doors and seal. The photo set should connect to a dated packing list and bundle map.

Make the packing specification part of the rod specification

Export packing is not a cosmetic add-on. It is the control that preserves rod geometry, surface condition and traceability after inspection. Send the transport route, receiving equipment, storage conditions, bundle limits and evidence requirements with the technical RFQ.
